Description

Adding a winch to your truck adds a whole other level of recovery along with the tools and confidence to venture further out into the bush. ComeUp Winch has put together a winch with the individual wheeler in mind. The SOLO 12.5rs is an easy to operate winch made to be heavy duty, reliable with a plethora of mounting and operating solutions. A wired remote for those times you’re operating from the driver seat and a wireless remote for when you’re out-front spotting your rigging. The control pack can also be remotely mounted to give better environmental protection. Paired with the synthetic winch line, this winch is a stout option to put on your wheeler to get you out of the hairiest of situations!

SPECIFICATIONS

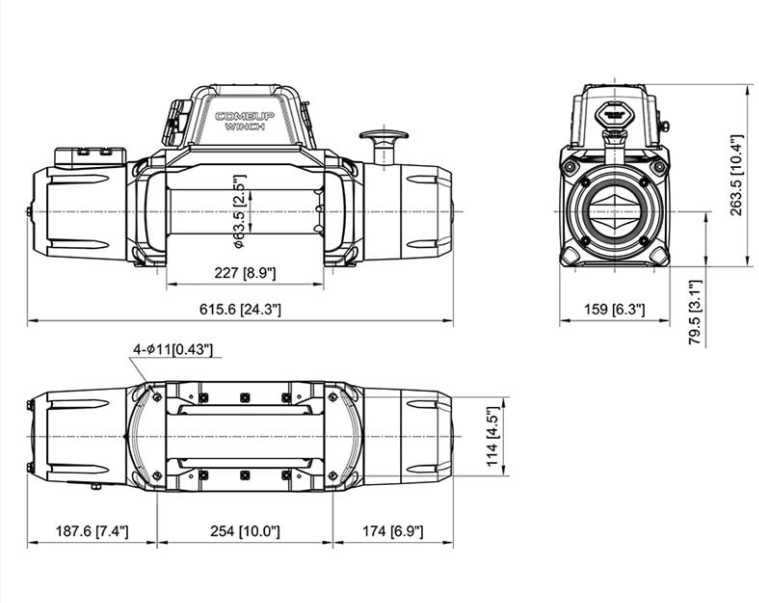

DIMENSIONS 27 9 17
Part number: PN 291280 (12V)
Rated line pull: 4,309 kg / 9,500 lb single line
Line speed (1st layer):
14.8 mpm / 48.6 fpm 60 A at 12V no load
2.2 mpm / 7.2 fpm 380 A at 12V full load
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
Rope type: Synthetic rope
Rope size: 10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting: Foot forward or foot down mounting workable
Finish: Matte black powder-coated

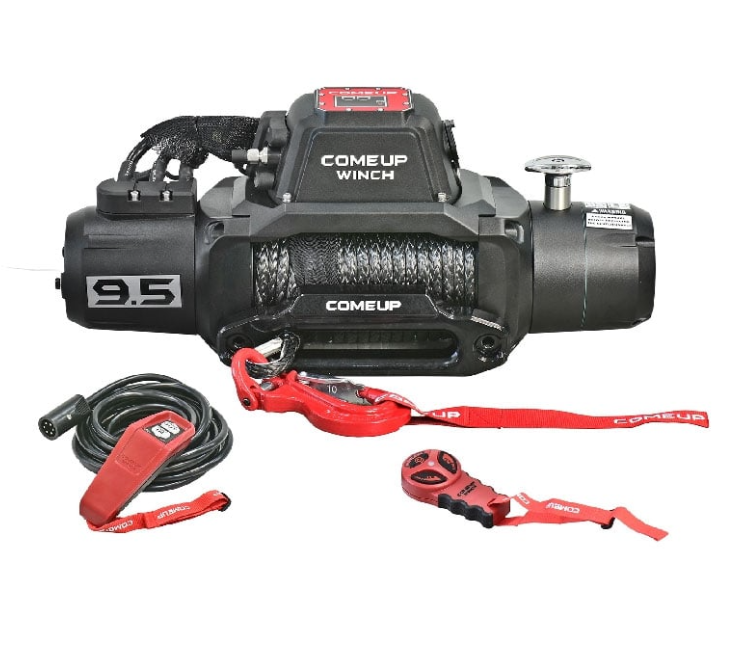

KIT COMPONENTS

SOLO 9.5rs winch
Hawse fairlead
Built-in wireless remote-control modules
Remote control w/5 m (17’) cord
Bridge control box
Synthetic rope w/sling hook
1.8 m (6’) 2-gauge battery lead
Hand saver strap

DESCRIPTION

12V DC severe duty winch rated at 9,500 lb. pulling meets and exceeds your expectations.
Heavy-duty series-wound motor equipped with thermal protection switch alters.
Trendy design on winch body with new stylish control pack dedicated to providing excellent winching experience.

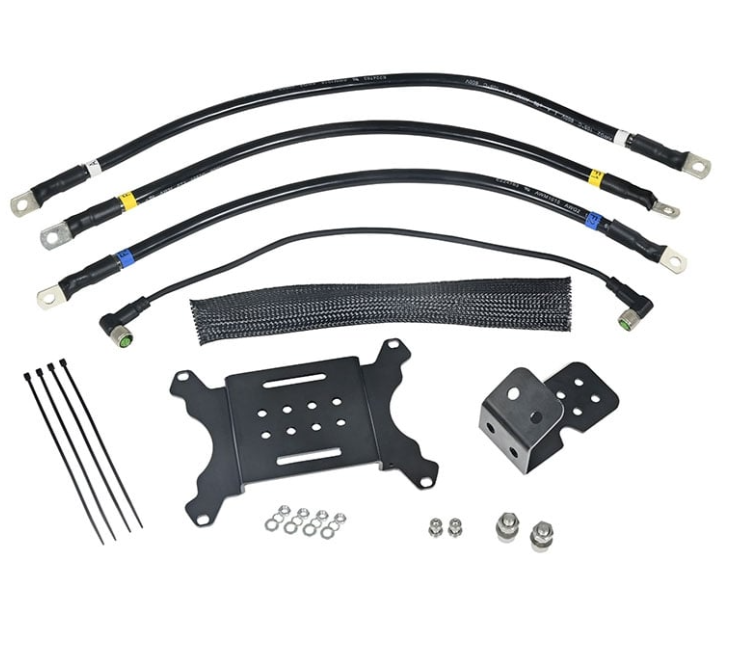

Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.
Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
Newly designed wireless and wired controllers offer better holding and reliable operation.
Wired controller has magnet design, allowing it to put on idle vehicle body.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and makes the winch ideal for use with synthetic rope.
Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
Built-in radio control module includes functions:
Cutout switch prevents the vehicle battery from draining when no use
Motor over-heating warning by LED indicators and beeper
