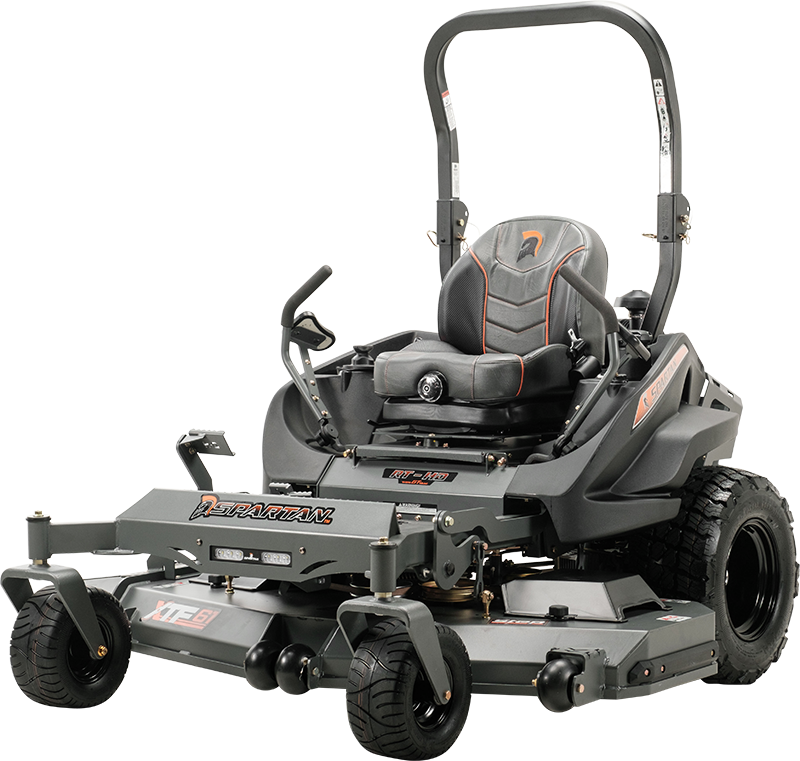

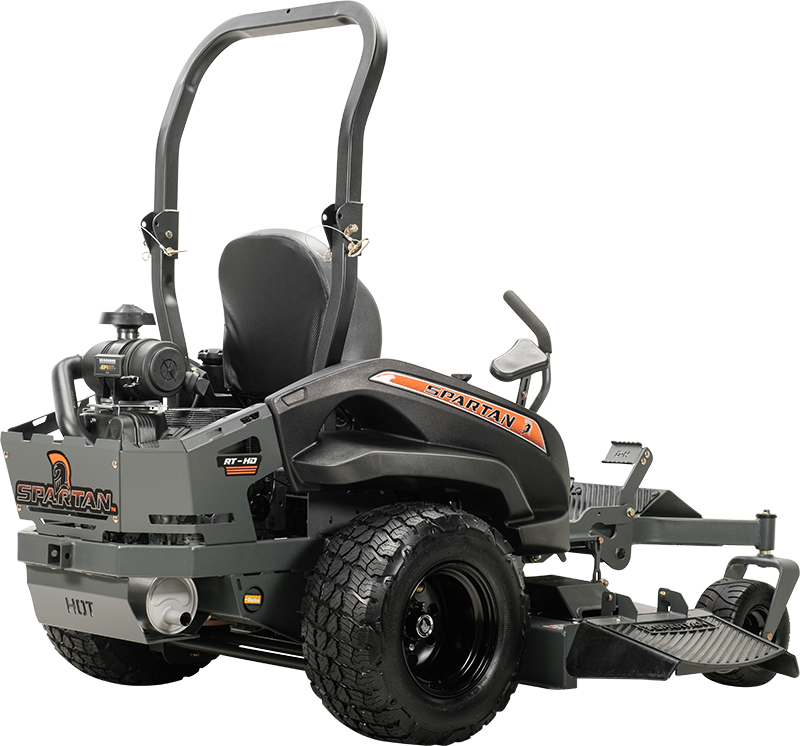

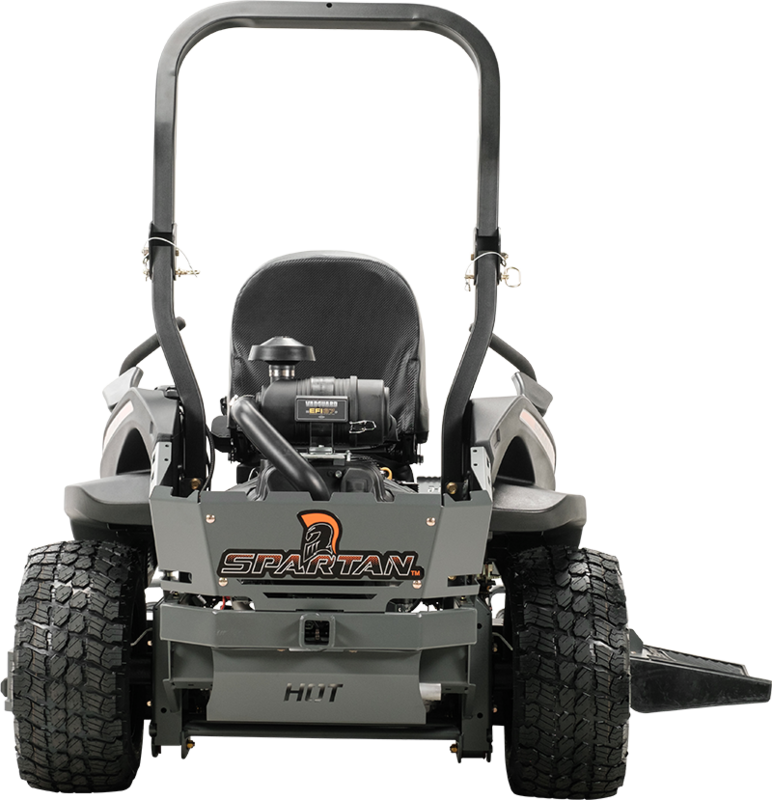

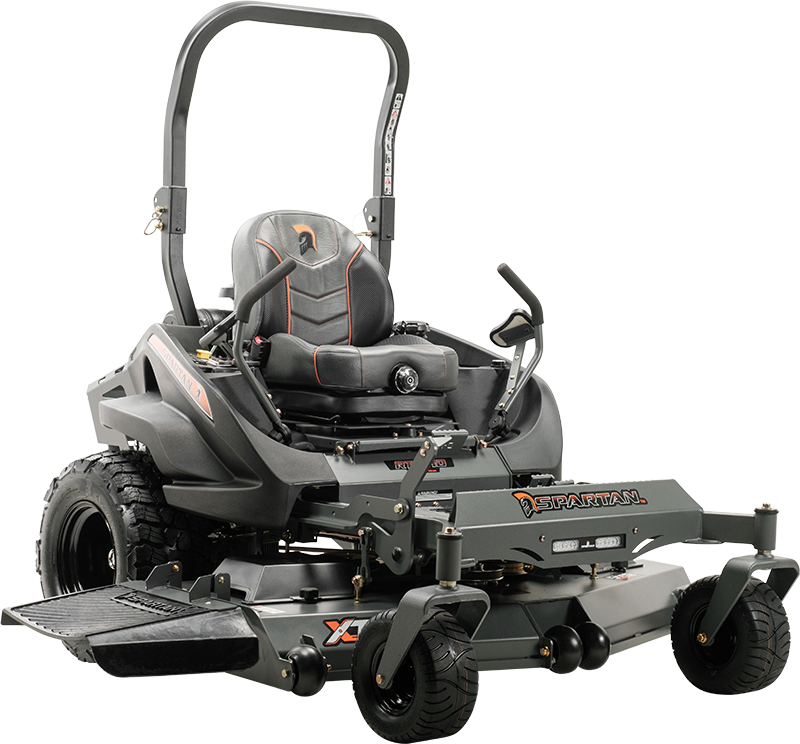

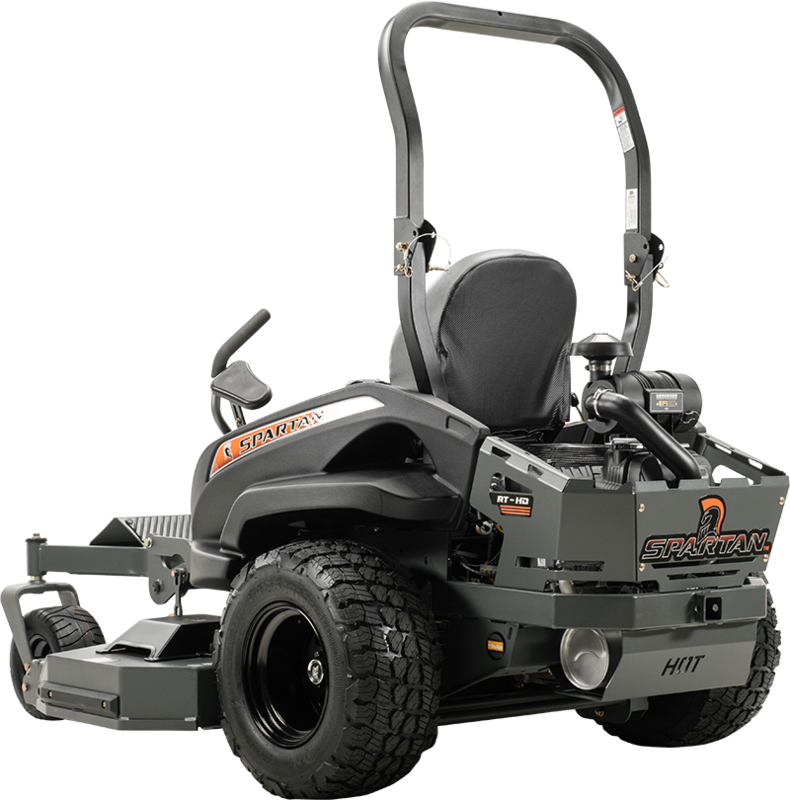

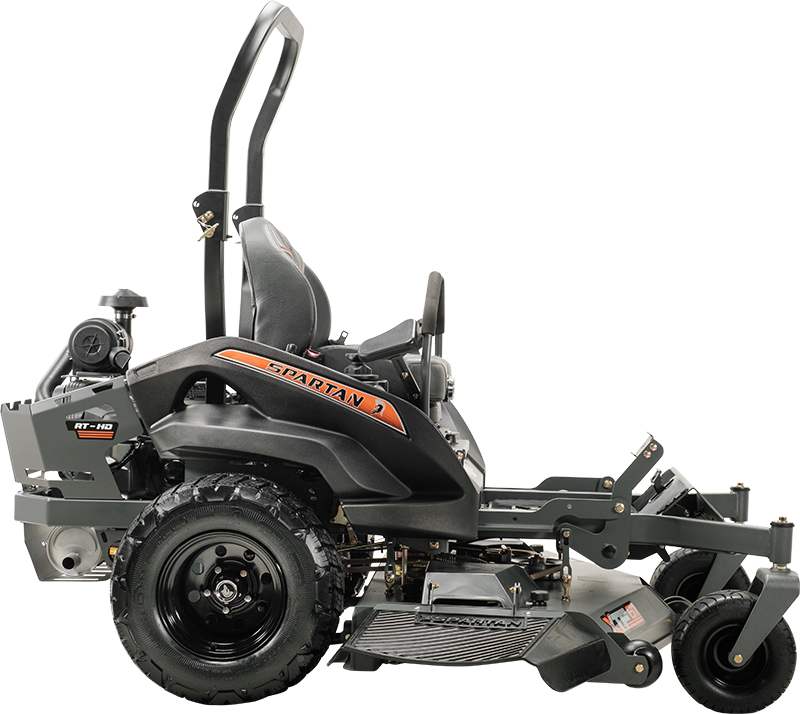

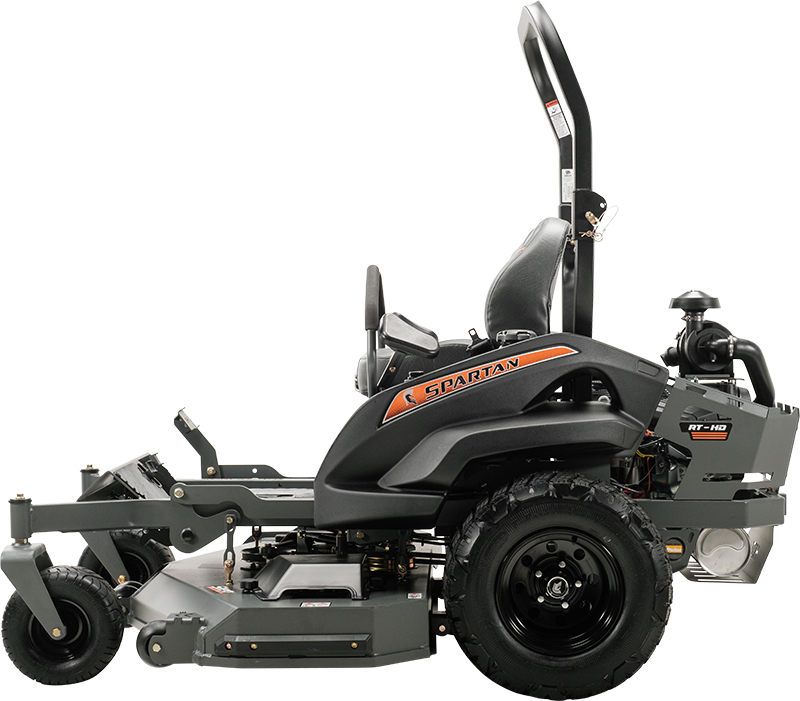

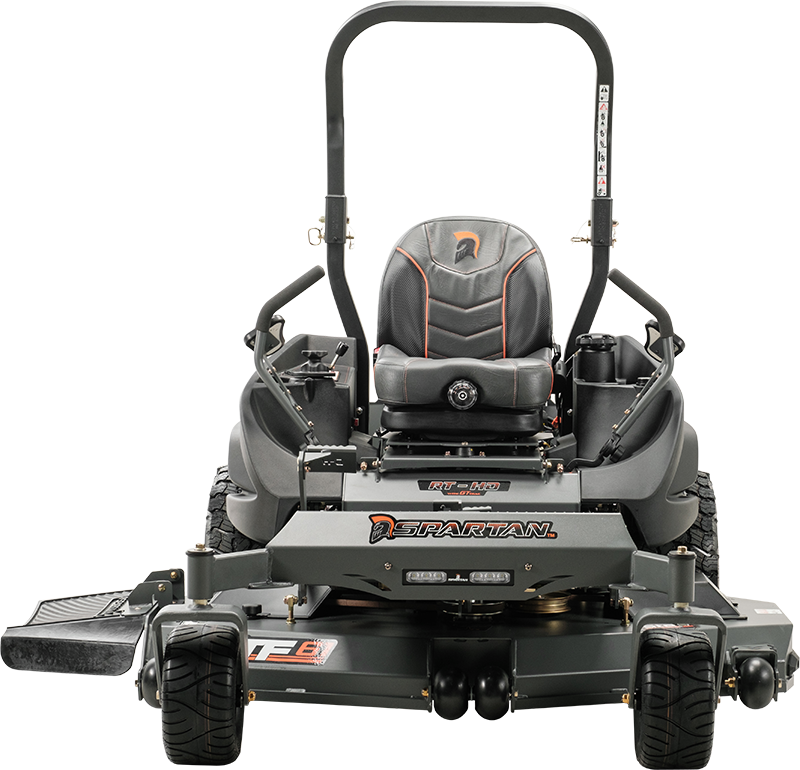

Spartan RT-HD / New Unit
$750.00 – $1,343.00
STARTING at $127 a mo OUT-THE-DOOR w.a.c. & NO City Sales Tax in Stockyards City! LOCAL PICKUP – DELIVERY – LOANER TRAILER / FINANCING / RENTAL – Try Before You Buy / TRADE-INS WELCOME CALL or TEXT 405.231.3131 for more details SITE DISCLAIMER: Online model inventories are not guaranteed. PLEASE CALL or MESSAGE FOR […]
Description
STARTING at $127 a mo OUT-THE-DOOR w.a.c. & NO City Sales Tax in Stockyards City!
LOCAL PICKUP – DELIVERY – LOANER TRAILER / FINANCING / RENTAL – Try Before You Buy / TRADE-INS WELCOME
CALL or TEXT 405.231.3131 for more details
SITE DISCLAIMER: Online model inventories are not guaranteed. PLEASE CALL or MESSAGE FOR AVAILABILITY AND BEST PRICE.
The RT-HD’s conventional design possesses four of the five layers as standard equipment: Radial Tires, TecsPak® adjustments from 100-300 pounds, 360-degree Seat Platform Dial Adjustable Suspension Seat. Three mower widths, 54″, 61″ and 72″, and three strong engine options make this Spartan’s best value zero turn commercial mower.
Take a test drive today in Stockyards City or ask about our Try Before you Buy program!
-
Front & Rear Radial Tires
-
TecsPak® Underseat
-
360 Degree Seat Plate
-
LED Light Kit
-
3” Adjustable Seat
-
4 Bearing Spindles
-
Adjustable Steering Arms
-
6” Deep Deck
-
11 mph Top Speed
-
18,500 FPM Blade Tip Speed
ENGINE
| Engine Name | Kawasaki FX-801V, Vanguard, Vanguard Big Block |
| Horsepower | 25.5HP, 26HP, 36HP |
| Fuel Capacity | 9.5gal |
DRIVE LINE
| Hydraulic Drive | Parker HTJ 12cc wheel motors. |
| Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
| Hydro Drive Maintenance | 1,000 hours between oil change |
| Drive Tires | 54″ – 24×10.50-R12 Radial | 61″ – 24×12-R12 Radial |
| Front Tires | 13×6.5-R6 Radial |
| Wheels Type | Steel |
| Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
| Seat | Full Suspension Seat with Adjustable TecsPak Elastomer supports and 360 degree Floating Seat Platform |
| Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
| Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter Time between oil change countdown, Fault codes |
| Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
| Ignition | Key-less, enter personal code to start |
| Auxiliary Power | 12 Volt outlet next to phone holder |
| Storage | Phone holder, cup holder and deep storage tray |
| Hitch | 2” Rear Receiver Standard |
CUTTING DECK
| Deck Sizes | 54”, 61” & 72” |
| Deck Depth | 6” Deep, Full-floating deck |
| Deck Lift | Foot operated with shock assist. Optional push-button electric |
| Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
| Cut Height | 1.125″ to 4.5″ with 15 Cut Heights in Between |
| Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
| Parking Brake | Foot operated |
| Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
| Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide | 72” Deck: 73.5” wide |
| Weight | 54” – 1108lbs | 61” -1131lbs | 72” – 1170lbs |
| Length | 84” |
| Height | 75” with ROPS up (54” Folding ROPS Down) |
WARRANTY
| Engine Warranty | 3 Years |
| Full Warranty | 3 Year / 500 Hours Residential – 2 Year / Unlimited Hour Commercial – 120 Day Belt Warranty |
| Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
| Hydraulic Drive Warranty | 3 Year / 1,500 Hour Warranty |
| Control Panel Warranty | 3 Years |
Also referred to as zero turn mower, ztr, zero turn radius mower, best zero turn mower, best value zero turn mower, commercial zero turn mower, spartan zero turn mower, spartan ztr, spartan mower, spartan mowers, spartan oklahoma, spartan zero turn, industrial zero turn mower, best riding zero turn mower
Additional information
| ENGINE | Kawasaki FX1000 35HP, Kawasaki FX801 25.5HP, Vanguard 26HP, Vanguard Big Block 37HP |
|---|---|
| DECK | 54", 61", 72" |
